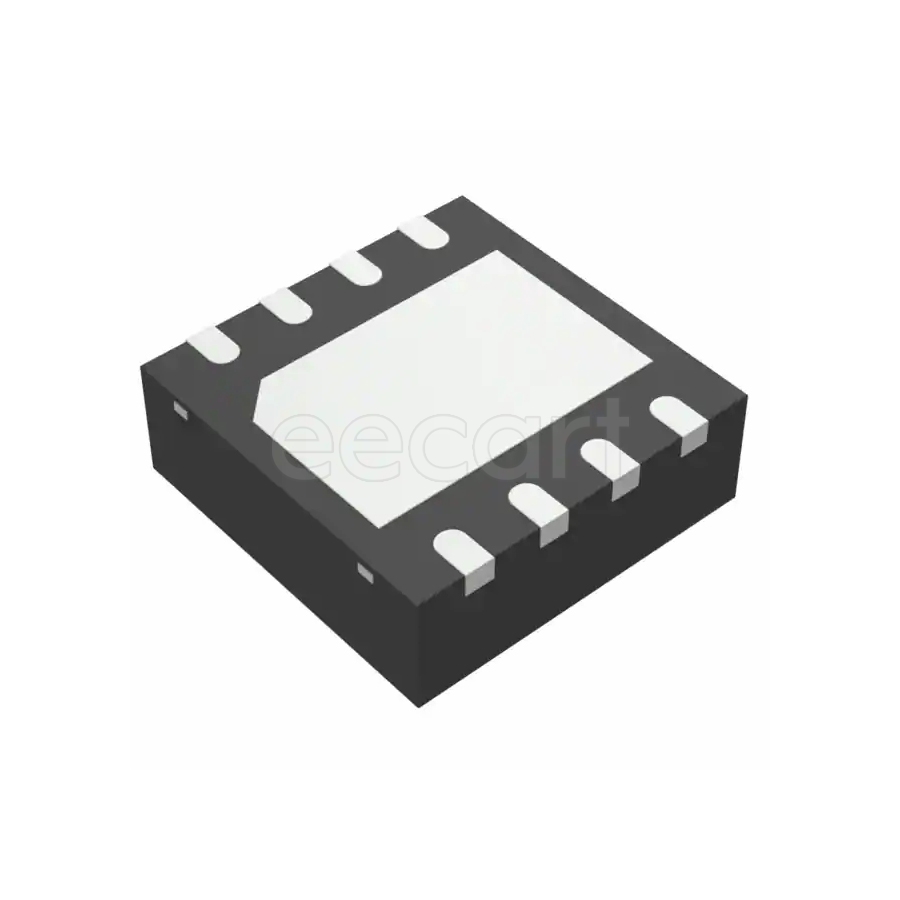

TPS61062DRBR
Manufacturer:
Texas Instruments
Mfr.Part #:
TPS61062DRBR
Datasheet:
Description:
LED Drivers SON-8 SMD/SMT PWM 400 mA
| Parameter | Value |
|---|---|
| Length | 3 mm |
| Width | 3 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Height | 1 mm |
| Packaging | Reel |
| Thickness | 0.88 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Frequency | 1.2 MHz |
| Type | DC DC Regulator |
| Min Input Voltage | 2.7 V |
| Output Current | 400 mA |
| Output Voltage | 23.5 V |
| Max Supply Voltage | 6 V |
| Min Supply Voltage | 2.7 V |
| Max Output Current | 60 mA |
| Number of Channels | 1 |
| Quiescent Current | 1 mA |
| Max Supply Current | 1 mA |
| High Level Output Current | 60 mA |
| Topology | Boost |
| Switching Frequency | 1 MHz |
| Max Input Voltage | 6 V |
| Number of Outputs | 1 |
| Dimming | PWM |
| Efficiency | 80 % |
| Number of Segments | 5 |
| Internal Switch | Yes |
Stock: 2
Distributors
pcbx
pcbxUnit Price$1.47495
Ext.Price$1.47495
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.47495 | $1.47495 |
| 10 | $1.43830 | $14.38300 |
| 25 | $1.42243 | $35.56075 |
| 50 | $1.40673 | $70.33650 |
| 100 | $1.39119 | $139.11900 |
